Galeon 480 FLY

The Galeon 480 FLY is a three-level flybridge at 48' 5" length overall, and Galeon builds it around one idea: open the boat up when it stops. The bathing platform zone carries a built-in barbecue, an overhead shower and fold-down transom seating, and Beach Mode adds fold-out side balconies with a bar counter that serves interior and exterior guests from the same position. The hydraulic bath platform is teak-clad and sized for launching a tender or sitting at water level.

Above that, the flybridge is the boat's main room rather than an overflow deck. A wraparound U-shaped sofa runs the social space, there is a wet bar with grill, sink and storage, and a companion seat sits beside the helm so a guest rides with the driver instead of behind him. Forward, the bow lounge carries sunpads with an optional seating area. Aft, the cockpit lounge connects straight through to the saloon, and the main-deck galley is positioned to serve both.

Galeon's key numbers for the 480: 3' 2" draft, 172 gallons of fresh water, 396 gallons of fuel split between two tanks, a maximum engine rating of 2 x 600 hp, a top speed of up to 28 knots, and 14 guests aboard.

Galeon quotes a maximum engine rating of 2 x 600 hp for the 480 FLY and a top speed of up to 28 knots. Cruise numbers are sea-trial numbers on this boat: ask for observed speed and consumption at your intended cruise rpm, in writing, on the package you order.

The engine package itself is a question for the order sheet - Galeon rates the model to a power ceiling rather than tying it to one manufacturer's package.

Draft is quoted at 3' 2" and at 4' 3". Plan on the deeper figure, and if you are shopping shallow water, get the draft of your build, with propellers, in writing before you commit to anything.

Beam is 19' 6", or 20' 10" with the balconies open. Confirm the figure for your own hull in writing before you book a berth, a lift or a haul-out - and confirm the balconies-open number too if your marina charges on it.

If you are sizing a lift, a trailer or a transport quote, ask the yard for the rigged weight of your hull and engine package in writing rather than working from anybody's estimate.

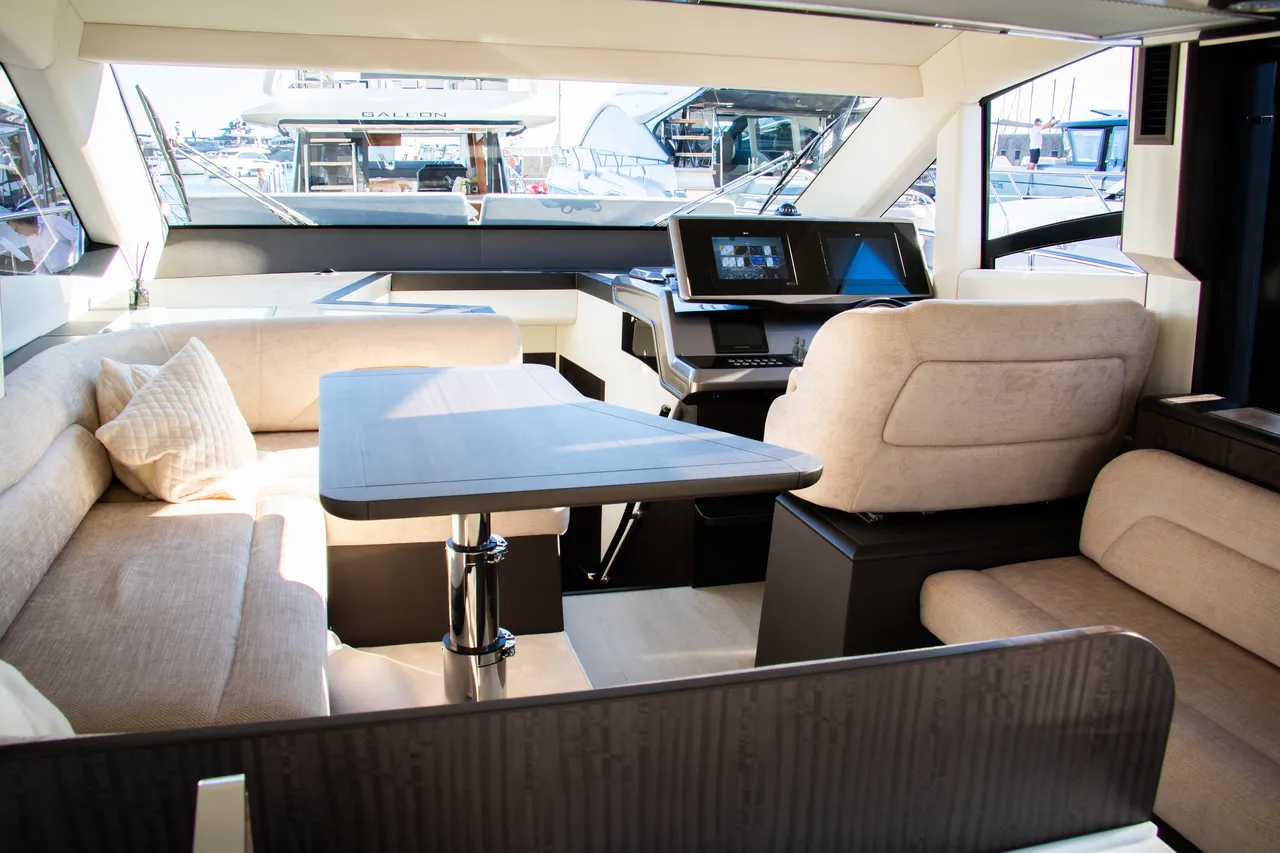

The main deck is one open room. Panoramic full-height windows run both sides of the saloon, and the galley, dining and lounge areas share a single space rather than being partitioned into three smaller ones. Galeon puts the galley where it can serve the cockpit as well as the saloon, which is the arrangement that makes a 48-footer work for fourteen people at anchor without anyone carrying plates up a step.

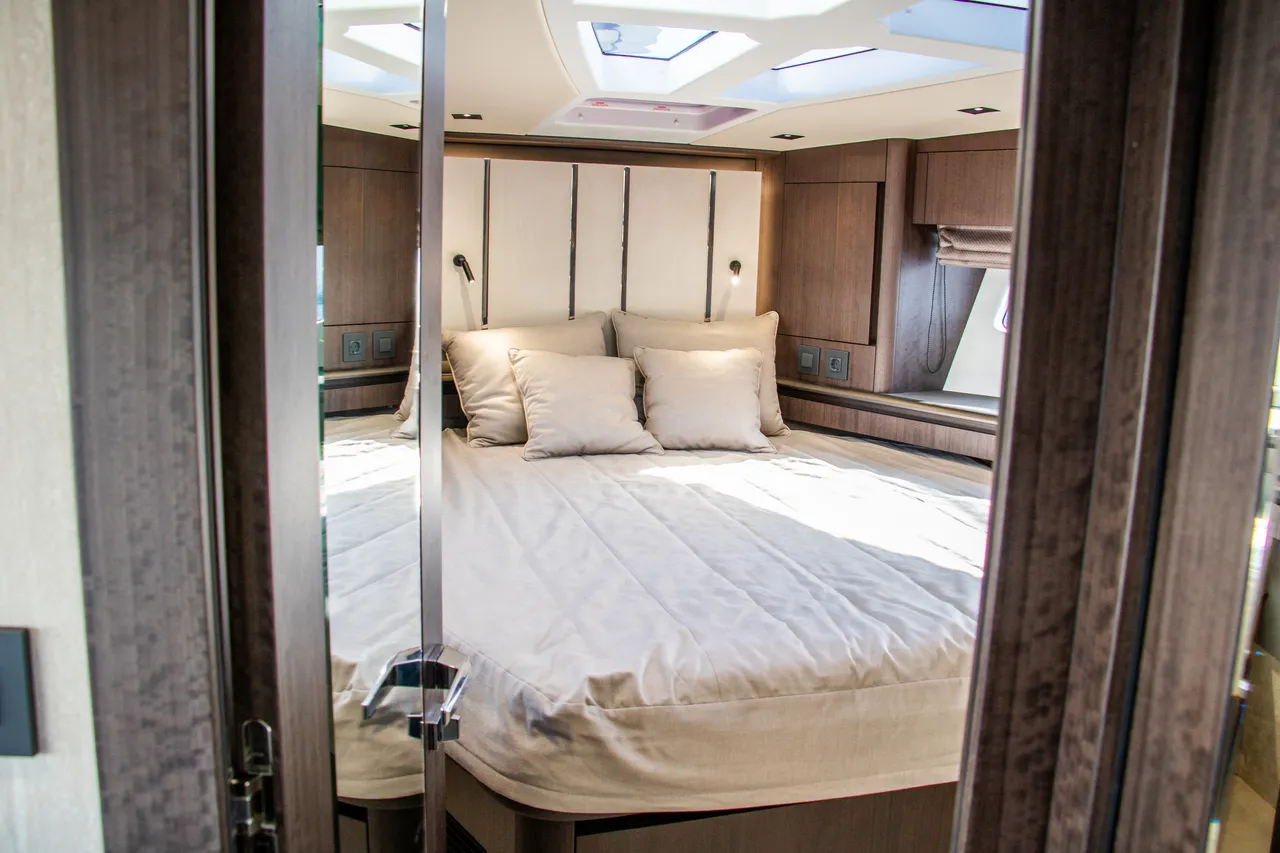

Below deck there are three cabins. The full-beam master is the one to see first: hull windows sit at bed level, so the view is from the pillow rather than from a hatch overhead. Forward, the VIP is a proper second cabin rather than a bunk room. The third cabin means children are not sharing with guests - which, at this length, is usually the reason a buyer is looking at a 48-footer instead of a 44.

Two heads serve those three cabins, and that is the trade this layout makes. The other practical limits are the tanks: 172 gallons of fresh water, 92 gallons of grey, and a black tank of either 53 or 92 gallons depending on how the boat is specified. Those are the figures to plan a long weekend and a pump-out schedule around, and the black-tank choice is worth making deliberately at the order desk rather than accepting the default.

The 480 FLY sits in a tight part of Galeon's flybridge range, and the spacing tells you what it is for. Below it, the 440 FLY is 45' 10" and listed with two or three cabins. Above it, the 520 FLY jumps to 56' 5" length overall, with a third head and a choice of an optional crew cabin or a tender garage. The 480 is 48' 5" and lists three cabins and two heads. It is the boat for a buyer who has decided three cabins are non-negotiable and does not want to buy eight more feet of dock to get them.

What the 480 gives up to the boats above it is crew space and tankage. Fuel is 396 gallons against the 520's 476 and the 560's 581. Fresh water is 172 gallons, the same as the 520 carries, and less than the 560's 198. What it keeps is the family resemblance that sells these boats: fold-out balconies, an open galley on the main deck that serves the cockpit, a flybridge with a real wet bar and grill, and a hydraulic bath platform.

Against the wider market, a 48-foot flybridge with three cabins puts a buyer in the same conversation as Azimut's Fly 53, the Princess F50 and the Fairline Squadron 50. What usually settles it is how much of the season is spent at anchor rather than under way, and Galeon has built the 480 firmly for the anchored half of that answer. What it leads with is a barbecue, a bar, a bathing platform and balconies.

One practical note. Galeon invites an enquiry on this model rather than pointing at stock, so a new 480 FLY is a build slot rather than a boat on a dock.

The 480 FLY fits the owner who entertains at anchor and wants the boat to open up when it gets there. Everything Galeon leads with points the same way: a wet bar with grill and sink on the flybridge, a barbecue and overhead shower at the bathing platform, fold-down transom seating, fold-out side balconies with a bar counter serving inside and out, and a teak platform big enough to sit on at water level.

It fits a family that needs three separate cabins under 50 feet. The full-beam master has hull windows at bed level, the forward VIP is a genuine second cabin, and the third cabin keeps children and guests apart. Two heads for three cabins is the compromise, and the tanks - 172 gallons of fresh water, 92 of grey, and a black tank of 53 or 92 gallons depending on specification - are the numbers that decide how long you can stay out.

It fits an owner-operator. A flybridge helm with a companion seat beside it, a maximum of 600 hp per side and an open main deck make this a boat you leave the dock in yourself rather than one that needs a captain standing by.

Before you commit, get the draft, the beam and the rigged weight confirmed in writing for your build. It is the wrong boat if you need crew accommodation or a tender garage - those arrive at 56' 5" with the 520 FLY, not here.
