Galeon 335 GTO

Expert Review, Technical Specifications & Market Analysis

The Essentials

FeatureSpecifications
Overall Length32' 9"
Beam10' 11"
Draft2' 6"
Displacement14,815 lbs
Engines2 x Outboard 400 hp; 2 x 300 hp standard
Fuel Capacity225 gal
Water Capacity32 gal
Cabins / Heads2 Cabins / 1 Head
Max Speed36 knots

Source: Spec & Photos courtesy of Galeon. Specs verified by Tony Smith, USCG 100 Ton Master, on August 26, 2026.

32' 9", twin outboards, and two separate cabins below deck - the 335 GTO carries a weekend's accommodation on a hull most builders would sell you as a day boat.

Galeon 335 GTO exterior

Quick Verdict

  • Two separate cabins on a 32' 9" hull: a full double amidships and a bow dinette that converts to a second double. The head has a toilet, sink and a full separate shower with a window.
  • Fresh water is 32 gallons against 225 gallons of fuel. That ratio is the honest limit on the weekend the cabins invite you to plan - two people washing sensibly, not four showering twice a day.
  • Up to 36 knots on twin outboards: 2 x 300 hp standard, 2 x 400 hp at the ceiling. Get observed burn at your cruise rpm in writing at the sea trial.
  • Draft swings with the engines: 2' 6" trimmed up, 3' 9" trimmed down. The deeper figure is the one you idle a channel on.
  • The hardtop is carbon fibre. On a 14,815 lb boat that is the heaviest structure, sitting where weight hurts most, built out of the lightest material available.
  • The port balcony folds down and takes the beam from 10' 11" to 14' 11", the terrace just above the waterline.
  • Asymmetric deck: wide bow, centrally set console, C-shaped bow seating that converts to a sunpad or a table, reversible cockpit backrests, and a wet galley with the grill on the options list.
  • Ten people rated. Joystick docking and digital anchoring at the helm - do the docking yourself on the trial.
Tony Smith, Founder of Minted Yachts

Our Take

I get asked for a thirty-three-foot boat that sleeps four about once a month, and most of the time I have to explain why it does not really exist. What people are shown is a day boat with a berth under the console and a head they would rather not use. The 335 GTO is one of the few boats this size where I do not have to have that conversation. Two separate cabins - a midship double and a convertible bow - and a head with a toilet, a sink and its own shower behind a door. On a 32' 9" hull that is genuinely unusual.

The carbon hardtop is the detail I would point at if you asked me what Galeon actually did here. On a boat this size a hardtop is a lot of weight in the worst possible place, as high above the waterline as anything on board gets. Building it out of carbon instead of laminate is money spent where a buyer at a show will never see it, and you feel it in how the boat sits at rest and how it behaves when the water gets confused. That is the opposite of the usual approach, which is to spend the money on upholstery.

Two things before you get excited. Fresh water is thirty-two gallons - read that again if you are picturing four adults aboard for a long weekend, because the cabins are promising more than the water tank can deliver. Plan your nights around a marina, or plan them around two people. And the draft swings from two foot six to three foot nine depending on whether the engines are up or down, which is a real number if your home water is thin at low tide. Then go and drive it. Thirty-six knots on a light 33-footer with a low roof feels like more than thirty-six knots, and that is either exactly what you came for or exactly what you did not.

Galeon 335 GTO Overview

The Galeon 335 GTO is a 32' 9" outboard sport cruiser, and what separates it from the day boats it will sit beside at a show is underneath the deck. Two separate sleeping areas and a full head with a toilet, sink and its own shower, on a hull with a 10' 11" beam. Most 33-footers with this much cockpit sell you a berth and a portable head.

The layout is asymmetrical by design: a wide bow paired with a centrally set console, which frees usable deck along one side and gives the helm a clear route to the side deck. The bow carries C-shaped seating with fold-down armrests that goes flat as a sunpad or takes a table. The cockpit has a lounge with reversible backrests - forward-facing under way, aft-facing at anchor - and a wet galley with a sink, fresh water, counter space and storage, with a grill on the options list. An extendable awning covers the aft end when the hardtop runs out. The port balcony folds down to open the beam from 10' 11" to 14' 11", the terrace sitting just above the waterline.

The numbers: 225 US gallons of fuel across two tanks, 32 gallons of fresh water, 14,815 lbs unladen, and a maximum of 2 x 400 hp on the transom with 2 x 300 hp as the standard package. Top speed is up to 36 knots and rated capacity is ten. The hardtop is carbon fibre, which on a boat this size is a structural decision rather than a styling one - it is the heaviest structure on board and it sits further above the waterline than anything else, so every pound saved up there is a pound not working against you in a beam sea.

Performance & Handling

Up to 36 knots on twin outboards, with 2 x 300 hp as the standard package and 2 x 400 hp as the ceiling. Ask for observed speed and fuel burn at your intended cruise rpm during the sea trial, and get it in writing before you sign - that is what turns 225 gallons of fuel into a range you can plan on.

Draft is the number that will shape your season. It is 2' 6" with the engines trimmed up and 3' 9" with them down, a fifteen-inch swing, and the deeper figure is the one you will actually be running on at idle in a channel. Take both to the chart, not the single number on a listing.

Weight is where the carbon hardtop earns its place. At 14,815 lbs unladen the 335 is light for its length and its volume, and the roof - the single heaviest structure above the deck line - is the part built out of carbon. Outboards make the same argument from the other end: the engines hang off the transom rather than sitting in the middle of the hull, so the accommodation gets the space and the centre of gravity stays low.

The handling gear is the modern outboard set. Joystick docking sits at the helm alongside digital anchoring, which holds position on the engines without putting ground tackle down - useful at a fuel dock, a bridge opening or a crowded sandbar. The helm seats are adjustable sport seats. If you have driven a joystick boat you already know whether this matters to you. If you have not, do the docking yourself on the trial rather than watching someone else do it.

Interior & Accommodations

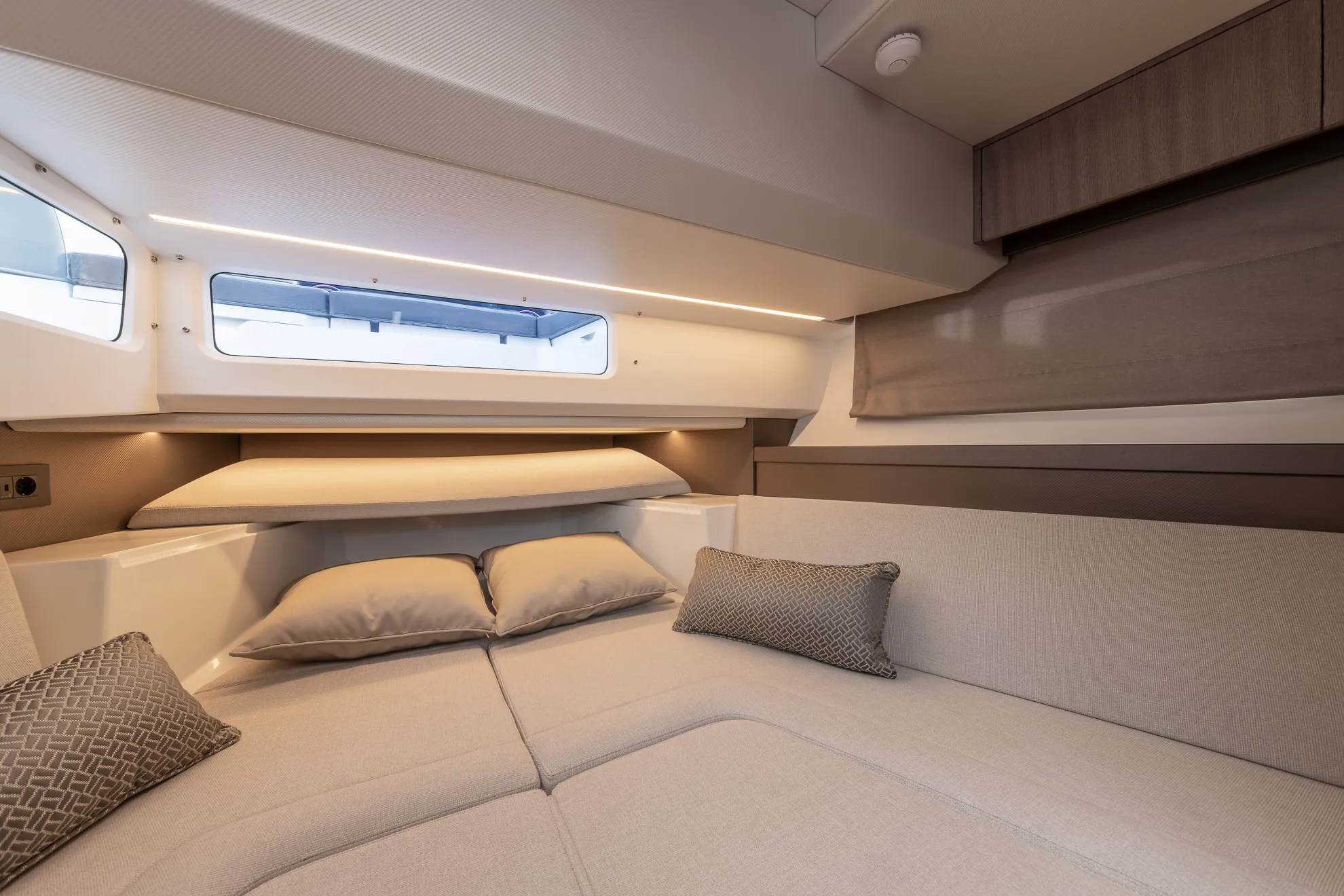

Two cabins and one head, on a boat with a 10' 11" beam. The midship cabin takes a full double berth, set under the cockpit sole where the hull is widest and quietest, with enough separation to read as a private room rather than a bunk. Forward, the dinette converts to a second double - which is where most 33-footers stop. Here it is the guest room rather than the only room.

The head is the part worth walking into before you decide anything else. Toilet, sink and a full separate shower, with a window for light and ventilation. Two sleeping areas sharing a proper wet head is a different boat from two sleeping areas sharing a compartment with a handset over the toilet, and it is the reason this hull works for a weekend rather than a long day.

Fresh water is 32 gallons, and that is the number to sit with. It is enough for two people washing sensibly across a weekend. It is not enough for four adults showering twice a day. Plan the trip around the tank, or plan on a marina.

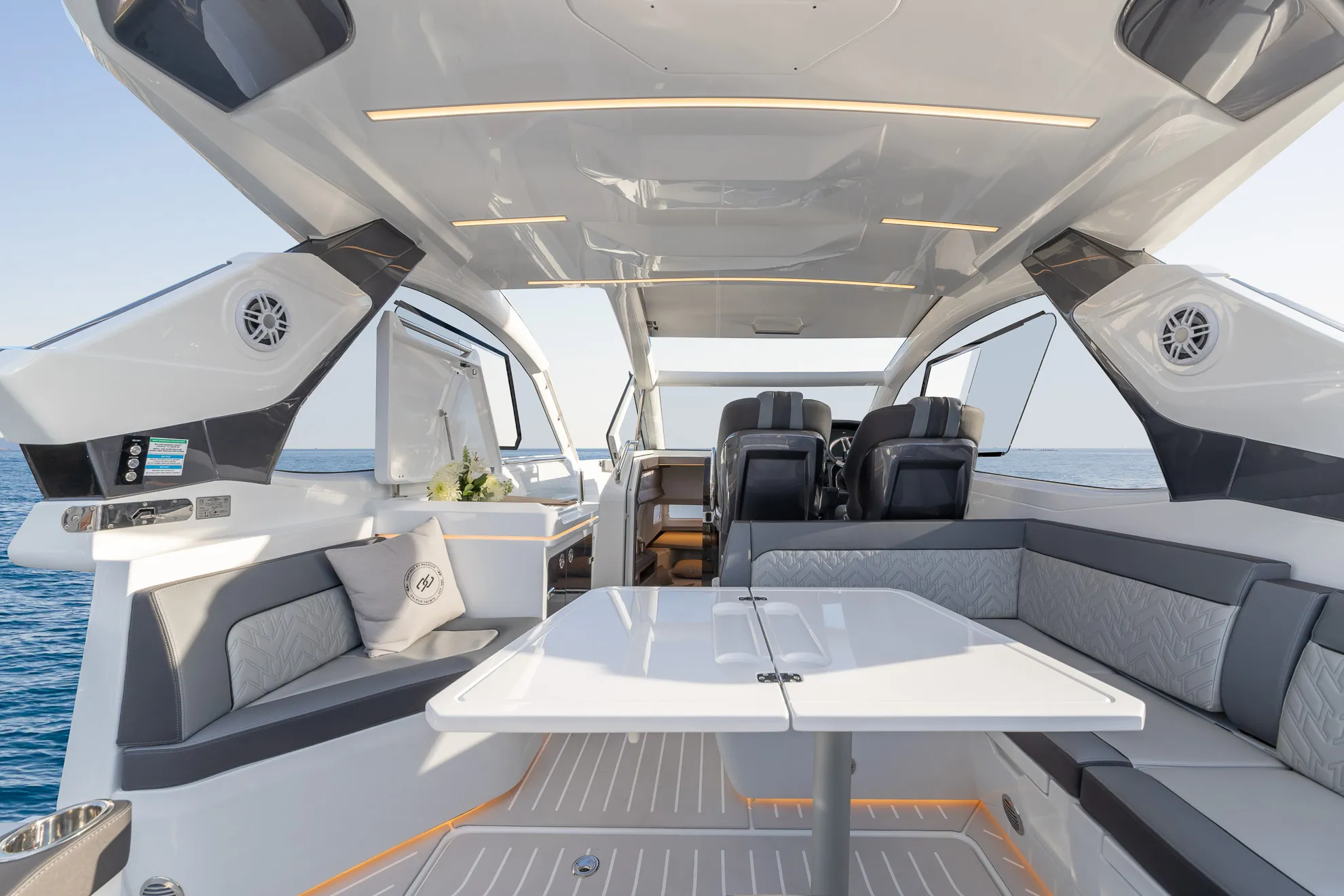

Above deck, the cockpit is the main living space and it is built to change shape. The reversible backrests turn the lounge to face either way, the wet galley handles food without sending anyone below, and an extendable awning shades the aft end. The bow seating with its fold-down armrests goes flat as a sunpad or takes a table, and the port balcony drops to put a terrace just above the water, taking the beam from 10' 11" to 14' 11". That is a lot of configurations for 32' 9".

Market Position

The 335 GTO is the entry point to Galeon's outboard class, and the step above it is the 375 GTO - five feet longer, seventeen more inches of beam, 396 gallons of fuel against 225, and 48 knots against 36. That is a bigger jump than five feet implies. What the smaller boat gives back is real: it is 6,000 lbs lighter, it draws the same 2' 6" with the drives up, and it is a boat two people can run and berth without a conversation about it.

Against the wider 33-foot outboard market the 335's argument is accommodation. American builders in this size class are largely building day boats with a berth - a cabin under the console, a marine head, and a cockpit designed around the sun. The 335 has two separate sleeping areas and a head with its own shower, and it still gives you a wet galley, a convertible bow and a drop-down balcony on deck. If you have been trying to find a 33-footer that genuinely sleeps four in two rooms, the list is short and this is on it.

Where the boat asks something of you is the tankage split. 225 gallons of fuel against 32 gallons of fresh water tells you exactly what this design expects you to do: run somewhere, spend the day, come back or take a slip. It is not provisioned to sit at anchor for three days with four people aboard, and no amount of cabin space changes that.

One decision that gets made at the order desk rather than at the dock: the grill in the wet galley is an option, and it is the difference between a galley that makes drinks and a galley that makes lunch.

Who the 335 GTO Is For

The 335 GTO fits the couple who want the boat to be a weekend rather than an afternoon. Two separate cabins - a midship double and a convertible bow dinette - and a head with a real shower mean two couples can go away on a 33-footer without anyone sleeping in the saloon or rinsing off on the swim platform. That is the whole reason to look at this boat instead of a bowrider with a cuddy.

It fits people who entertain at anchor. The port balcony drops the living space to the waterline and opens the beam from 10' 11" to 14' 11", the cockpit backrests reverse so the lounge faces the party rather than the bow, the bow seating goes flat or takes a table, and the wet galley keeps the food on deck. Ten is the rated capacity and the deck is laid out to hold that many.

It fits an owner who wants to run the boat alone. Joystick docking, digital anchoring, a central helm with clear sightlines and a wide bow that stays settled when someone walks forward. None of that is exotic any more, but all of it together makes a 33-footer a one-person boat.

It is the wrong boat if you are provisioning for real time at anchor. Thirty-two gallons of fresh water is a weekend for two, not a week for four, and the accommodation promises more than the tank can deliver.

Galeon 335 GTO Articles & Guides

Compare With

Frequently Asked Questions

Does the Galeon 335 GTO really sleep four?

Yes, in two separate spaces rather than one. The midship cabin takes a full double berth set under the cockpit sole where the hull is widest, and the bow dinette converts to a second double. They are distinct areas with a door between them and the rest of the boat, which is what most 33-footers cannot offer - the usual arrangement at this length is a single berth under the console and a cockpit designed around the sun.

The head is the part that turns four berths into a workable weekend. It has a toilet, a sink and a full separate shower with a window for light and ventilation, rather than a handset over the toilet. The limit is not the berths, it is the tank: fresh water is 32 gallons, which is two people washing sensibly across a weekend rather than four adults showering twice a day. Plan the nights around the tank or plan on a marina.

What does the Galeon 335 GTO draw, and how fast is it?

Up to 36 knots, and the draft depends on the engines. Trimmed up the boat draws 2' 6"; trimmed down it draws 3' 9". Fifteen inches is a real swing, and the deeper number is the one you will be running on at idle in a channel, so take both to the chart rather than the single figure on a listing.

Power is twin outboards, 300 hp each as the standard package and 400 hp each at the ceiling, on a hull that weighs 14,815 lbs unladen - light for its length and volume, helped by a hardtop built out of carbon fibre rather than laminate. Treat 36 knots as the ceiling and generate your own cruise and burn figures at the sea trial. At the helm the boat carries joystick docking and digital anchoring that holds position on the engines without ground tackle.

How much fuel and water does the Galeon 335 GTO carry?

225 US gallons of fuel across two tanks, and 32 gallons of fresh water. That split is the clearest statement of what the boat is designed to do: run somewhere, spend the day, and come back or take a slip. 225 gallons is a large tank for a 32' 9" hull and it is why the 335 gets discussed as a range boat rather than a harbour boat.

To turn the tank into a range, ask for observed speed and fuel burn at your intended cruise rpm during the sea trial, in writing, and do the arithmetic yourself. On the water side, 32 gallons is the figure that limits the weekend, not the berths - the accommodation sleeps four and the tank comfortably supports two.

Should I buy the Galeon 335 GTO or step up to the 375 GTO?

It comes down to whether you want speed and range or a boat two people can run without thinking. The 375 GTO is five feet longer with seventeen more inches of beam, 396 gallons of fuel against 225, and up to 48 knots against 36. It also adds a flush walkaround deck, a retractable sunroof over the helm and a transom you can specify three ways, including a fishing edition. That is a substantially different boat, not a slightly larger one.

The 335 gives back around 6,000 lbs of weight, the same 2' 6" trimmed-up draft, and a smaller slip. Its accommodation is arguably the better arrangement for a couple: a full double amidships and a convertible bow, against the 375's two singles amidships with a walkway between them. If your season is day trips and the occasional weekend for two, the 335 is the whole boat. If you fish, or if the extra twelve knots would change where you go, the step up is worth taking.
